BEHAVE : Behaviour Evaluation of Human-driven and Autonomous Vehicles

Research Projects

BEHAVE : Behaviour Evaluation of Human-driven and Autonomous Vehicles

David Eckhoff

Autonomous vehicles (AVs) are not going to replace ordinary cars overnight. Therefore, there will be a period during which the roads will be shared by AVs and human drivers. The effects of such a mixed traffic situation are hard to predict, and thus safety must be rigorously studied and ensured. Unfortunately, as a result of real-life tests, numerous accidents with AVs on the roads have already been reported, sadly also including one fatality. In order to achieve certainty for the safety properties of AVs, hundreds of millions of kilometres have to be driven and a large variety of known and yet-to-be-discovered dangerous test scenarios should be evaluated. This would further extend the risk exposure to real-life accidents. The BEHAVE project (Behaviour Evaluation of Human-driven and Autonomous VEhicles) aims to move as many of these dangerous test scenarios as possible from the real world to a virtual environment using simulation. This approach will drastically reduce the long time needed for real-life testing, as in a simulation environment millions of kilometres can be driven in a matter of days or even hours, avoiding risking lives on the road and saving energy at the same time. This will enable the timely identification of critical AV technology issues, ensuring safety and accelerating the adoption process.

Methodologically, the BEHAVE project relies on detailed data-driven microscopic mobility behaviour models. The project is currently in its seed phase, which focuses on making the first step towards simulating mixed traffic (AVs and human-driven vehicles) scenarios. This will enable the detailed evaluation of the vehicle interactions in custom-designed scenarios.

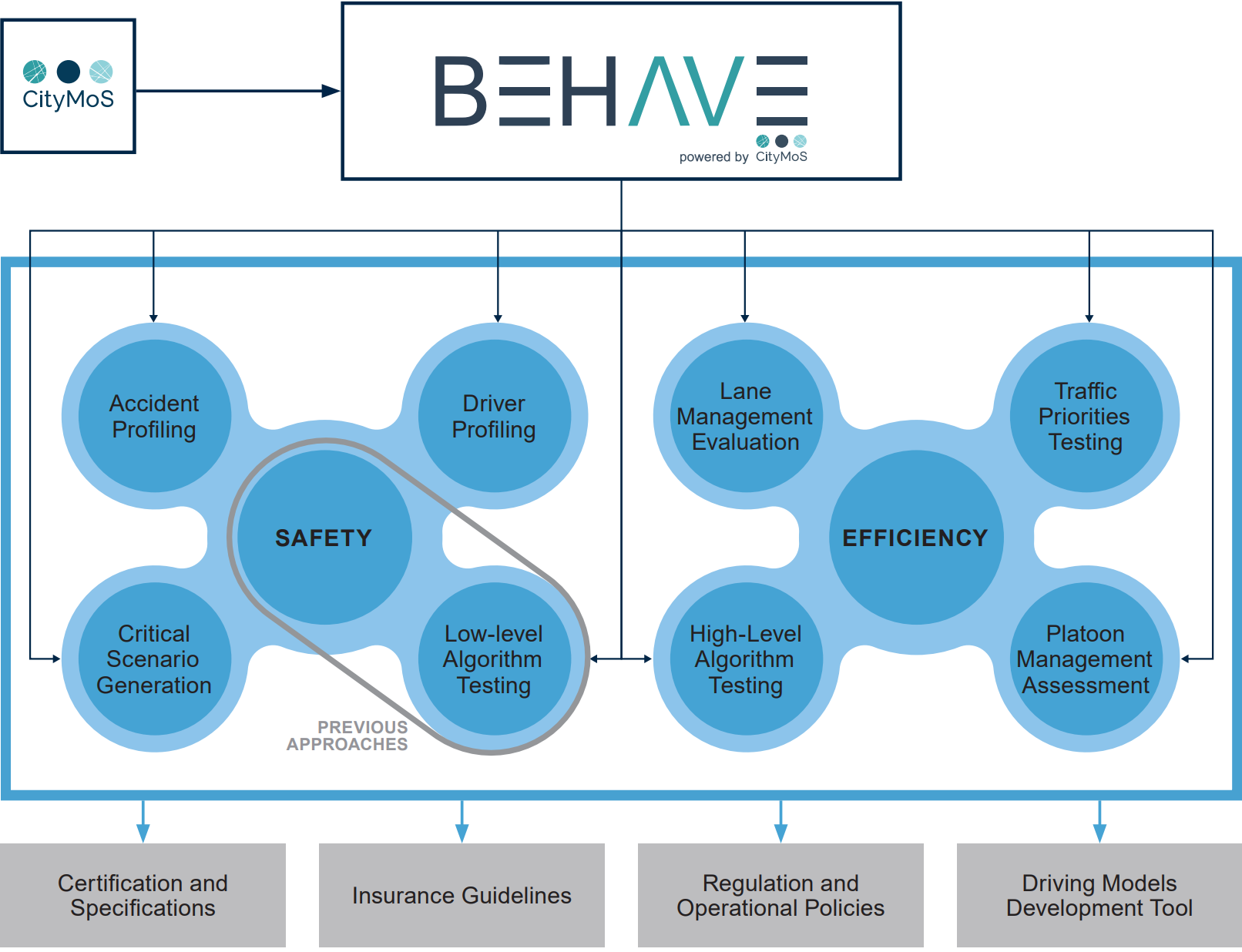

The BEHAVE platform, which is powered by the CityMoS engine, will be the tool used to achieve these goals. It will support the decision making of policy-makers for designing new regulations regarding traffic policies, safety protocols, and control algorithms for AVs. BEHAVE will also provide an environment for AV makers to design and fine-tune their vehicle control logic. Furthermore, the simulation platform can be used by insurance companies to tackle the immense challenge that AV technology brings to their sector.

To make the process of driving behaviour model design easier and also to allow non-experts to get a feeling for the platform’s functionality, the BEHAVE model development tool allows users to interactively tweak the models’ logic and parameters, thus immediately observing the impacts their changes have on traffic conditions and safety levels in a simplistic scenario.

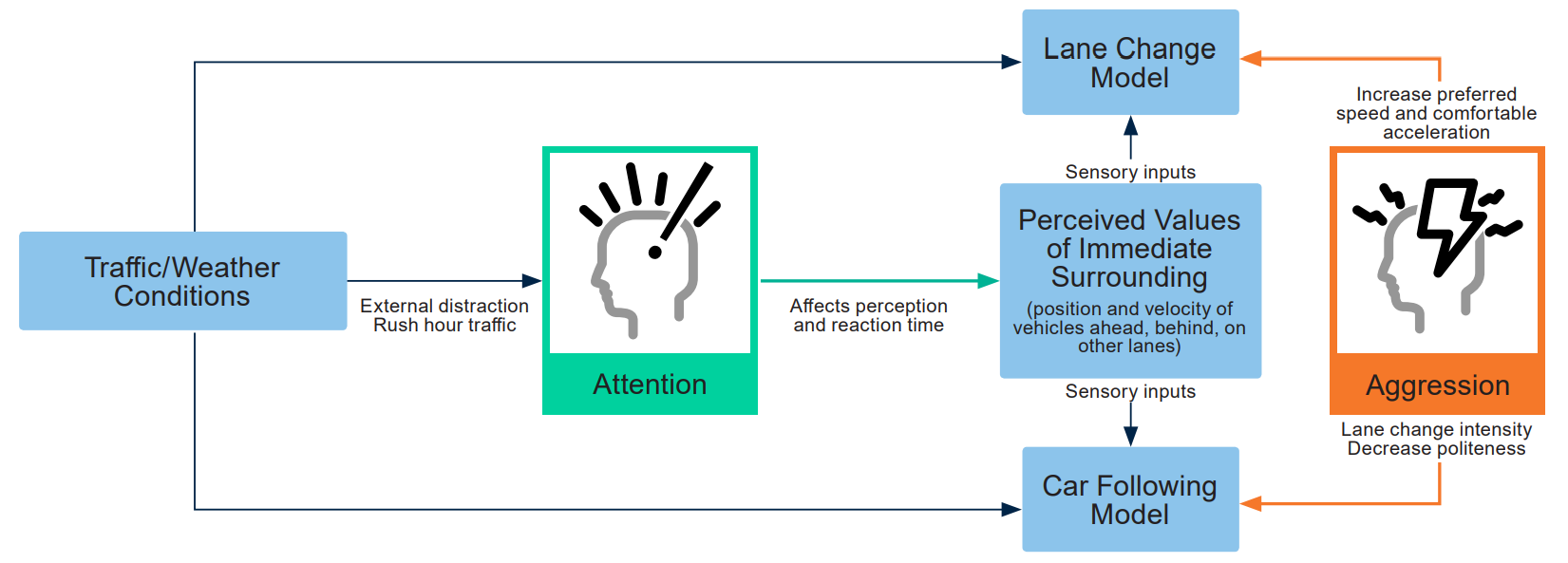

Towards more realistic human driver behaviour


We are developing extensions of existing car-following and lane-changing models, which allow for modelling the “human” part of the non-AV vehicles. We are exploring the addition of stochastic elements to incorporate unpredictable and even irrational human behaviour which includes factors like aggression, attention, and perception in the decision-making process both in the car-following and lane-changing models. Manipulating these stochastic elements will also allow for modelling changing driving behaviour because of external factors such as weather conditions, darkness, stress factors, and recklessness. By doing so, origins and effects of accidents due to these behaviours can be studied, capabilities that are missing in today frameworks.

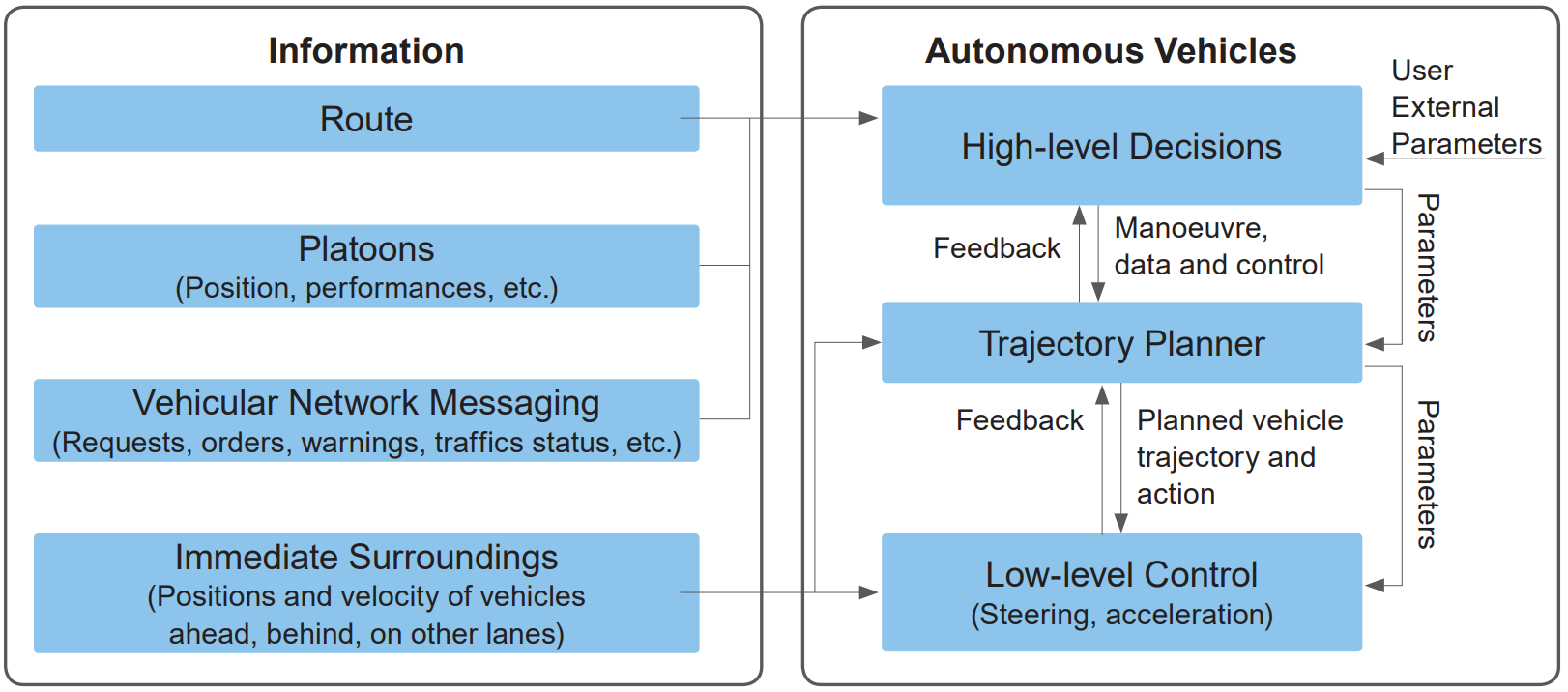

Implementation of Autonomous Vehicle Behaviour Models


Our autonomous vehicle model allows for basic platoon formation, merging, and splitting. This enables the AVs to perform key manoeuvres unique to this class of vehicle and thus study the implications of AVs on traffic and the safety properties of platoons. The model has a hierarchical structure, which includes high-level planning, trajectory computation, and low-level control.

Variety of driver and vehicle types in mixed traffic scenarios


The definition of distinct driver/vehicle populations that use different behaviour models enables the simulation of mixed traffic by, for example, allowing one of the populations to be governed by the autonomous vehicle behaviour model and the other one by the extended human-driven model.

Studying weather impact on traffic conditions

The user has control over weather conditions in the simulation and can change them dynamically while the simulation is running. Driver models will behave differently under different weather conditions.

Poor weather and visibility causes:

  • ↑ Increase in inter-vehicle distance

  • ↑ Increase in perception error

  • ↓ Decrease in lane change activity

  • ↓ Decrease in preferred speed

Car-following Model Parameter Calibration


The main concern when using microscopic traffic simulation is the trustworthiness of the results. Standard models as defined in the literature are often insufficient to generate a realistic simulation environment. Therefore, based on real data, we are introducing a calibration algorithm to address these issues.

Socially Optimal Behaviour of Autonomous Vehicles in the Context of mixed traffic


We research into possibilities for leveraging the capabilities of AVs so that the overall flow and comfort is improved. We create a so-called socially aware AV that, through altered acceleration and deceleration behaviour, will benefit surrounding human drivers and improve the overall traffic conditions
